PaxOcean Delivers Dual-Fuel Tug to PSA Marine

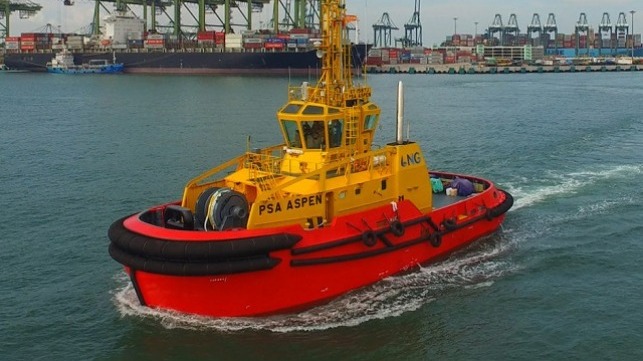

PSA Aspen
PSA Aspen

By The Maritime Executive 2019-08-19 17:07:58

PaxOcean Shipyard Pte. Ltd. has delivered the dual fuel ship-handling tug PSA Aspen, a Robert Allan Ltd. RAmparts 2800-DF design, to PSA Marine, Singapore. The PSA Aspen is the first dual fuel tug to enter service with PSA Marine in the Port of Singapore and the first Robert Allan Ltd. designed dual fuel tug to enter service in Asia.

The cooperation between Robert Allan Ltd. and PSA Marine began in 2002, with the design of Z-Tech® tug series. Since that time the two companies have developed a close, cooperative working relationship, providing high quality custom-tailored tugs for the international market. There are more than two dozen of Robert Allan Ltd. Z-Tech®, RAmparts and RAstar tugs in the PSA Marine fleet currently.

RAmparts 2800-DF is a dual fuel variant of the popular RAmparts series and is able to operate on either natural gas or diesel fuel.

The Particulars of tugboat PSA Aspen are:

Length Overall: 28.2m
Beam, molded: 11.5m
Depth, molded: 5.55m
Maximum Nav: 4.61m
Gross Tonnage: 447 GRT
Fuel oil: 50m3
LNG (Gross): 25m3
Potable water: 45m3
The tug was designed and constructed to the following Bureau Veritas Class Notation:

BV 1+Hull, +MACH, TUG – DUAL FUEL, COASTAL AREA, +AUT UMS, IWS

Robert Allan Ltd. worked in cooperation with Bureau Veritas to utilize the gas system and vessel configuration design principles used on the previously completed RAstar 4000-DF tug design series. By utilizing the RAstar 4000-DF reference design the approval process was significantly streamlined, and the same innovative features used on the reference tug were easily transferred and refined for the new design, providing PSA Marine with an evolutionary tug.

Trial results were as follows:

Bollard pull, ahead: 56.1 MT
Free running speed, ahead: 13+ knots

The vessel’s accommodations are outfitted to MLC compliant standards for a crew of up to six personnel. All the crew cabins are outfitted with private en-suite washrooms, with a common washroom located in near the wheelhouse.

Main propulsion for the tug comprises a pair of Niigata 6L28AHX-DF main engines, each rated at 1618 kW at 750 rpm, driving a straight-line steel shaft system to a Niigata ZP-31 Z-Peller propulsion unit with a 2,200 mm diameter fixed pitch propeller and zero to idle slipping clutch. The Niigata main engines attain IMO Tier III emission requirements while operating in Gas Mode, and IMO Tier II emission requirements while in Diesel Mode. The engine transition seamlessly between gas and diesel operation and back.

The 25m3 vacuum insulated IMO Type C LNG storage tank and fuel gas system was provided by Gloryholder Liquefied Machinery (DL) Co., Ltd. With integration of main engine and fuel gas system complete in cooperation with Niigata.

The electrical plant consists of two identical Perkins E70 TAG3M ship service generator with a power output of 130 ekW.

Ship handling fenders at the bow consists of an upper 800 x 400 mm cylindrical fender with a lower 600 x 300 mm cylindrical fender. A 300 x 300 hollow “D” fender provides protection at the main deck sheer line and along the knuckle, and 600 x 300 mm cylindrical fender is used at the stern.

The deck machinery comprises a MacGregor MG-HTW1 hydraulic double drum hawser winch on the bow, spooled with 2 x 220 m line on each drum. With twin stern anchor winches and a Palfinger PK12000M foldable knuckle-boom deck crane are provided on aft deck.
